CUDA Graphs¶

This write-up introduces the new CUDA Graphs modes in vLLM v1 beyond previous torch.compile integration. To summarize, we:

1. Added flexible cudagraph_mode configuration
2. Made full CUDA Graphs support orthogonal to compilation
3. Introduced a CUDA Graphs dispatcher as a central controller that picks the desired runtime mode and CUDA Graphs per batch automatically

In this document we will discuss the:

• Motivation
• CUDA Graphs modes
• Detailed design
• Example usage of the different CUDA Graphs modes

Motivation¶

Initial piecewise compilation was built to allow piecewise cudagraph capture, excluding cudagraph-unsupported operations (mainly attention). This allowed some speedup from cudagraphs while maintaining compatibility with all attention backends. We later added support for "full cudagraphs" by not compiling piecewise, so that we could further reduce the latency in cases where attention supported cudagraphs. However, this tight coupling between compilation and cudagraph capture led to an all-or-nothing experience with little flexibility. Many attention backends also weren’t ready for unified "full" CUDA Graphs capture (e.g., only FlashAttention 3 supports it currently) or only support CUDA Graphs for pure decode batches (e.g., Flashinfer, FlashMLA, and Mamba, etc.). That led to confusing performance/compatibility tradeoffs, inconsistent CUDA Graphs support, and increasingly complex code structure.

This led us to seek a more fine-grained CUDA Graphs solution with the following features:

• Explicitly aware of CUDA Graphs for prefill/mixed or (uniform-)decode batch and capture them separately.
• Separate CUDAGraph capture logic from compilation (as much as feasible) for feature orthogonality, which suggest:
  • Capturing piecewise and full cudagraphs using the same compiled graph, and
  • Full cudagraph capture without compilation.
• Dispatch between full and piecewise cudagraph at runtime depending on batch composition.
• Centralized control of CUDAGraph behavior for reduced code complexity and allowed more extendibility.

These features allow the most flexibility for cudagraph capture and compilation for all kinds of startup/performance tradeoffs and feature support.

CudagraphModes¶

CUDAGraphMode is the single knob you tune in CompilationConfig.cudagraph_mode:

• NONE — turn CUDA Graphs off. Good for debugging.
• PIECEWISE — a single-mode strategy (and past default). It is the most flexible: attention or other CUDA Graphs-incompatible operations stay eager, everything else goes into CUDA Graphs. Requires piecewise compilation.
• FULL — a single-mode strategy, which only captures full CUDA Graphs for non-uniform batches, then uniform-decode batches reuse the CUDA Graph of non-uniform batch of the same batch_size, since they are compatible; can be good for small models or workloads with small prompts.
• FULL_DECODE_ONLY — full CUDA Graph for uniform decode, no cudagraph for prefill/mixed etc; suitable for decode instances in a P/D setup where prefill is not as important, this way we can save the memory needed for PIECEWISE CUDA Graphs.
• FULL_AND_PIECEWISE — (default mode) full CUDA Graph for uniform decode, piecewise CUDA Graphs for others; generally the most performant setting, especially for low latency with small models or MoEs, but also requires the most memory and takes the longest to capture.

Defaults: If you’re on v1 with piecewise compilation, we default to FULL_AND_PIECEWISE for better performance, (for pooling models, it's still PIECEWISE). Otherwise, e.g. if piecewise compilation unavailable, we default to NONE.

While NONE , PIECEWISE, and FULL are single-mode configurations and simply equivalent to past implementations of eager execution, piecewise CUDA Graphs, and full CUDA Graphs respectively, FULL_DECODE_ONLY and FULL_AND_PIECEWISE are newly appended dual-mode configurations, which require dispatching to switch between concrete runtime modes according to runtime batches dynamically.

While cascade attention is not cudagraph compatible, it is now compatible with all possible cudagraph mode configurations. If a batch uses cascade attention, it always gets dispatched to PIECEWISE mode if available (otherwise NONE).

Detailed Design¶

Overview¶

The new CUDA Graphs logic is built on top of piecewise compilation and supports dual CUDA Graphs runtime mode switching. The system contains the following core components:

• CUDAGraphWrapper: wrapper that handles CUDAGraph capture & replay on the wrapped callable
• CudagraphDispatcher: the central controller that contains the single source of truth about CUDA Graphs and handles dispatching between them.
• CUDAGraphMode: enum describing the supported and runtime modes (introduced above).
• BatchDescriptor, serving as a unique representation of the runtime batch used for dispatching.

See the following figures for a quick comparison between the previous and current design patterns of CUDA Graphs with inductor compilation. We can see that previously the CUDA Graphs logic and compilation logic were tightly coupled into the vllm PiecewiseBackend, and CUDA Graphs was implicitly dispatched by batch_size idly. Now the CUDA Graphs logic is separated into the CUDAGraphWrapper class, responsible for both full and piecewise CUDA Graphs abilities, and dispatching is explicitly done via runtime mode plus the BatchDescriptor as the dispatch key via CudagraphDispatcher.

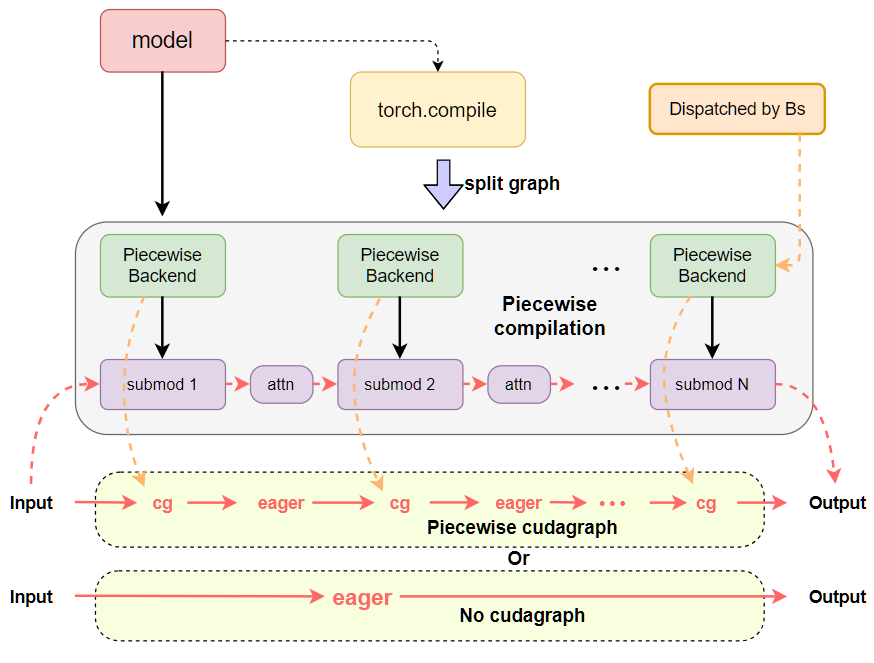

Before:

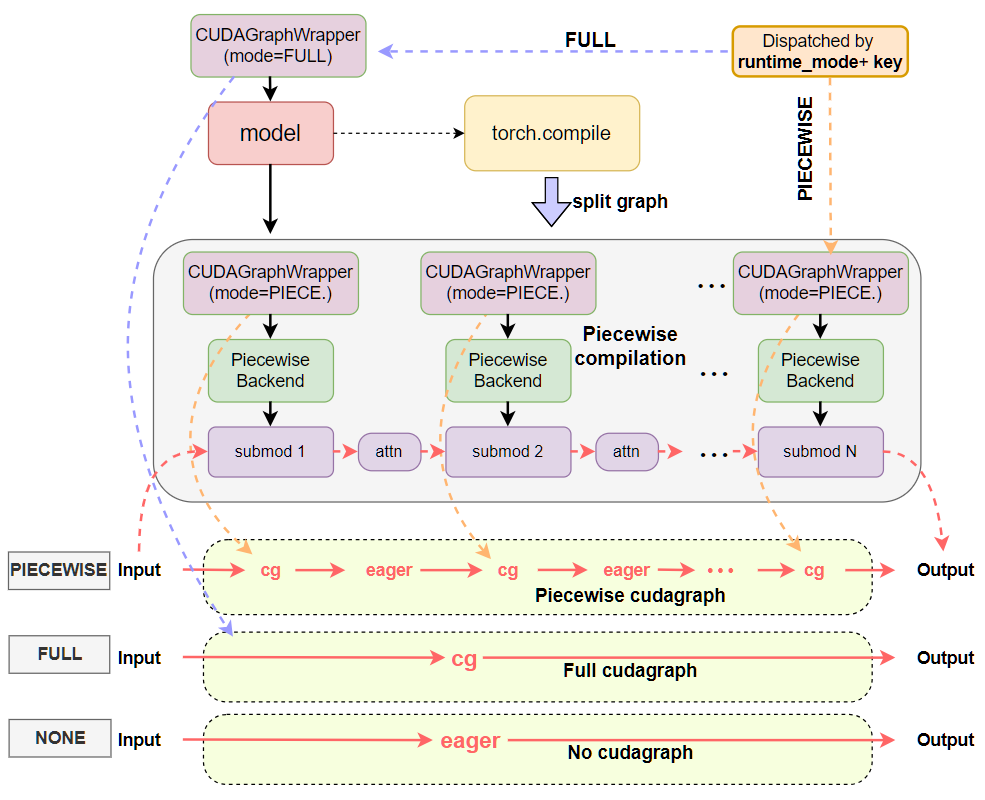

After:

BatchDescriptor¶

BatchDescriptor is a component within ForwardContext, alongside the CUDA Graphs runtime modes, serving as the core structure for dispatching keys at runtime. The prototype is:

class BatchDescriptor(NamedTuple):
    num_tokens: int
    uniform_decode: bool = False

where num_tokens can be the padded token length, and uniform_decode is determined by if max_query_len of a batch is equal to the desired max_query_len of a uniform_decode, and the num_scheduled_tokens is divisible by that desired max_query_len.

The goal of this structure is to uniquely identify a (padded) batch with minimal possible items corresponding to a CUDA Graphs item. We are safe to exclude items like uniform_query_len because it is a constant at runtime for a certain setup currently. For example, it should be either 1 for a commonly pure decode or 1+num_spec_tokens for a validation phase of speculative decode.

CudagraphDispatcher¶

The CudagraphDispatcher takes responsibility for maintaining two sets of valid dispatching keys, one set for FULL runtime mode and one set for PIECEWISE runtime mode, and dispatches the correct runtime mode and the dispatching keys before executing the model's forwards. It will take in the initial key (a rough batch_descriptor for the padded input) and return the selected runtime mode and the final batch_descriptor, then tell the CUDAGraphWarpper instances that decision through forward contexts. Notice that CudagraphDispatcher is the only source of truth for available CUDA Graph keys and CUDAGraphWrapper instances can blindly trust the forward context on what CUDA Graphs to dispatch to. This lets us simplify the wrapper code and centralize the logic in the dispatcher.

The dispatching keys are initialized through the dispatcher's initialize_cudagraph_keys method, which is called by the gpu_model_runner after all possible attention backends are initialized. This is where we can get much fancier in the future and “prepare” all kinds of CUDA Graphs combinations. For now, we just append available keys based on the valid combos of decode_mode/mixed_mode of cudagraph_mode and cudagraph_capture_sizes in the compilation config.

The dispatch code looks like:

batch_descriptor=BatchDescriptor(num_tokens=num_input_tokens, uniform_decode=...)
runtime_mode, batch_descriptor = cudagraphdispatcher.dispatch(batch_descriptor)
# execution
with set_forward_context(...,
            cudagraph_runtime_mode=runtime_mode,
            batch_descriptor=batch_descriptor):
     output = self.model(...)

Inside the dispatch() method, the dispatcher will search the proper CUDA Graphs runtime mode and existing dispatching keys for a return. We basically search the existing keys following the priority: FULL>PIECEWISE>None. If the dispatching key does not exist, default to return NONE mode for eager execution. The implementations can be found here.

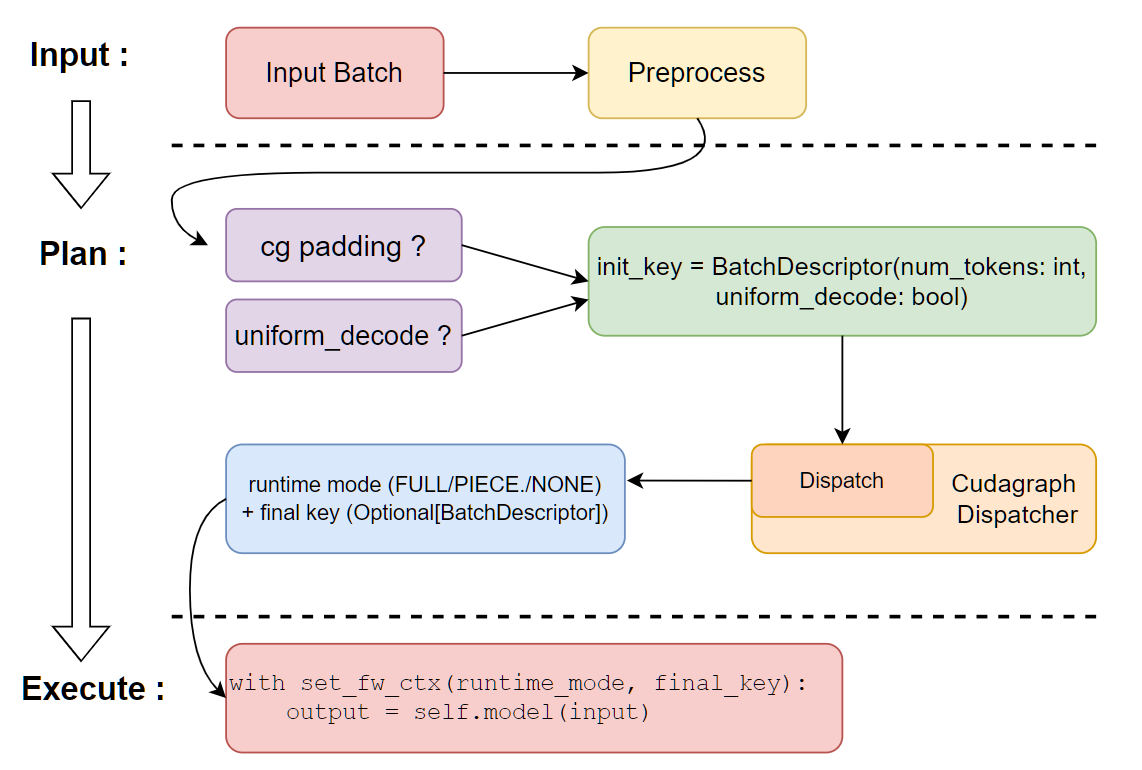

Here is a simplified illustration of the workflow at runtime in the model executor:

CUDAGraphWrapper¶

A CUDAGraphWrapper instance wraps a runnable and simply mimics the runnable with appended CUDA Graphs abilities. Each wrapper instance is bound to a specific runtime_mode, which is restricted to PIECEWISE and FULL mode, and takes responsibility for capturing/replaying and passing through (directly calling) the runnable. At runtime, each wrapper would:

1. inspect the runtime_mode and batch_descriptor(dispatching key) from the global forward context.
2. If runtime_mode is NONE or runtime_mode does not match the mode of the wrapper, just call the runnable directly.
3. Otherwise, i.e., the runtime_mode matches the mode of the wrapper, the wrapper will perform CUDA Graphs capture (if key does not exist, create a new entry and cache it) or replay (if key exists in the cache).

The above steps are based on the assumption that the CUDA Graphs wrapper would directly trust what’s in the forward context (controlled by the dispatcher). This lets us simplify and cenralize the logic, reducing the complexity as well as the risk of mismatched state between the wrappers and the dispatcher. It also allows reusing the wrapper class for both FULL and PIECEWISE runtime modes. See the implementation here.

Nested Wrapper design¶

The core mechanism of making a full CUDA Graphs and piecewise CUDA Graphs coexist and compatible is the nested CUDA Graphs wrapper design, building on top of piecewise compilation with only a single piecewise FX graph. We wrap a FULL mode wrapper outside the entire model for the full CUDA Graphs functionality; meanwhile, each piecewise backend is wrapped via a PIECEWISE mode wrapper inside the compilation.

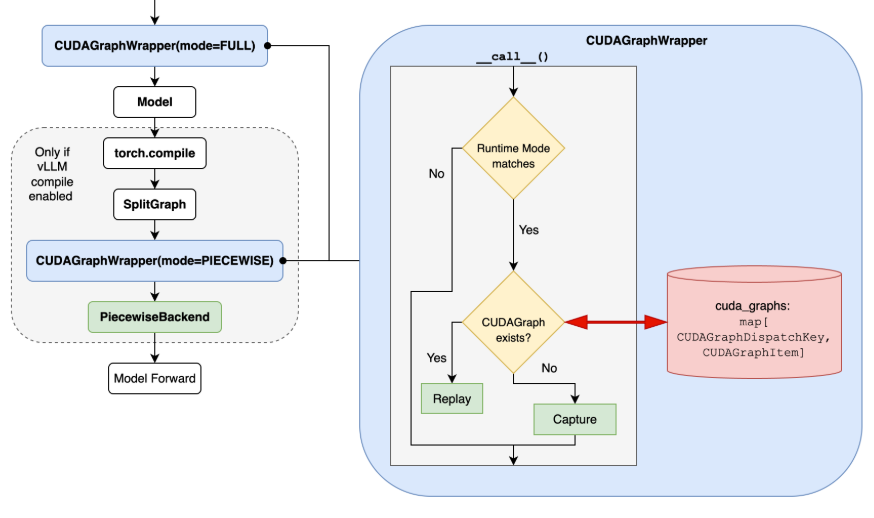

The flow chart below should clearly describe how it works.

Therefore, for a FULL runtime mode, it is safe to capture/replay a full CUDA Graph since the piecewise wrapper is not activated. The situation is similar for PIECEWISE mode, as there are no conflicts between the FULL mode wrapper and PIECEWISE mode wrappers. For the NONE runtime mode, both FULL and PIECEWISE wrappers would not be activated, so we simply fall through to eager execution.

Full CUDA Graph capturing & warm-up¶

The CUDA Graphs capturing happens when the runner first calls the model forward (using _dummy_run) with a non-NONE runtime mode. For full CUDA Graph capture, we explicitly capture different cases (i.e., prefill/mixed batch or uniform_decode batch) by properly setting attention metadata to make sure the underlying attention backends launch the desired kernel routines. To distinguish prefill/mixed batch or uniform_decode batch, the most important property is the max_query_len in attn_metadata (true for most attention backends). We set it to the desired uniform_query_len for uniform_decode otherwise we make it just the num_tokens for a non-uniform_decode batch.

The CUDA Graphs wrapper no longer manages the warm-up logic. The warm-up process is now controlled directly by the GPU model runner, where the NONE runtime mode is assigned to play an eager execution for warm-up. When warming up for a full CUDA Graph, it is also important to explicitly run attention during the warmup dummy_run call.

CUDA Graphs Compatibility of Attention Backends¶

To signal the CUDA Graphs compatibility of the attention backends, we introduce a new enum type AttentionCGSupport, which is an enum type that tracks the capability of the attention backend to support CUDA Graphs. The value is sorted in the order of the capability, i.e., ALWAYS> UNIFORM_BATCH> UNIFORM_SINGLE_TOKEN_DECODE> NEVER.

class AttentionCGSupport(enum.Enum):
    """ Constants for the CUDA Graphs support of the attention backend
    Here we do not consider the cascade attention, as currently
    it is never CUDA Graphs supported."""

    ALWAYS = 3
    """CUDA Graphs always supported; supports mixed-prefill-decode"""
    UNIFORM_BATCH = 2
    """CUDA Graphs supported for batches the only contain query lengths that are
    the same, this can be used for spec-decode
        i.e. "decodes" are 1 + num_speculative_tokens"""
    UNIFORM_SINGLE_TOKEN_DECODE = 1
    """CUDA Graphs supported for batches the only contain query_len==1 decodes"""
    NEVER = 0
    """NO CUDA Graphs support"""

Suppose we have hybrid attention backends (e.g., in mamba mixer models). In that case, we seek the minimum capability of all backends to determine the final capability of the model, and we might resolve the incompatible CUDA Graphs mode by downgrading the mode to the best fit one. For example, downgrading FULL mode to FULL_AND_PIECEWISE mode if the minimum capability is UNIFORM_BATCH, or PIECEWISE mode if the minimum capability is NEVER for -O3 compilation level. For the complete fallback policy, please see the code of initialize_cudagraph_capture.

The following table lists backends that support full CUDA Graphs at the time of writing.

Unlisted backends are all declared as NEVER.

Usage guide¶

Now the CLI is directly using the uppercase string of cudagraph_mode for compilation_config: --compilation-config '{"cudagraph_mode": "..."}', where ... should be one of NONE, PIECEWISE, FULL, FULL_DECODE_ONLY, and FULL_AND_PIECEWISE. Note that all PIECEWISE related modes require piecewise compilation, and all FULL related modes need CUDA Graphs support of attention backends. For example:

vllm serve --model meta-llama/Llama-3.1-8B-Instruct --compilation-config '{"cudagraph_mode": "FULL_AND_PIECEWISE"}'

Python examples¶

import os
os.environ.setdefault("VLLM_LOGGING_LEVEL", "DEBUG")

import vllm
from vllm.config import CUDAGraphMode

compilation_config = {"level": 3, "cudagraph_mode": "FULL_AND_PIECEWISE"}
model = vllm.LLM(
            model="meta-llama/Llama-3.1-8B-Instruct",
            dtype='auto',
            compilation_config = compilation_config,
        )
sampling_params = vllm.SamplingParams(
    temperature=0,  # greedy decoding
    max_tokens=1024,
)
outputs = model.generate(
    ["My name is John and"],
    sampling_params=sampling_params,
)

Migration from legacy flags¶

Legacy use_cudagraph and full_cuda_graph are unified by cudagraph_mode:

• use_cudagraph=False → NONE.
• use_cudagraph=True and full_cuda_graph=False → PIECEWISE.
• full_cuda_graph=True → directly set FULL and rely on the graceful fallback policy.

As they are deprecated and will be removed in the next major or minor release, i.e., v0.11.0 or v1.0.0, we recommend using cudagraph_mode instead.

Piecewise compilation and full graph custom passes (attention fusion, sequence parallelism)¶

Unfortunately, some custom compile passes have to see the whole graph to be effective and hence aren't compatible with piecewise compilation. This includes AttnFusionPass and SequenceParallelismPass. As a short-term solution, we automatically disable piecewise compilation (by setting splitting_ops=[]) when attention fusion is enabled. We use CUDA Graph modes FULL or FULL_DECODE_ONLY (depending on backend support). However, this leads to another optimization incompatibility and confusing performance tradeoffs.

Long term, we've added the ability to partition the graph in Inductor instead of right after Dynamo. It can be enabled with CompilationConfig.use_inductor_graph_partition=True but is currently experimental and only available with torch>=2.9. This also increases compilation time as it has to compile the whole graph and cannot reuse piecewise compilation artifacts. Once vLLM supports 2.9, we plan to make this the default approach as it will also speed up piecewise cudagraph capture.

About the Performance¶

See the following links for examples:

• 20059#issuecomment-3160858458
• 20059#issuecomment-3188735226
• 20059#issuecomment-3219888738
